8 Inch Stainless Steel Butterfly Valve , High Performance Butterfly Valves

Name: 8 Inch Stainless Steel Butterfly Valve High Performance Butterfly Valves
Brand: KAYSUNS
Price: 1 USD

Wholesale 8 Inch Stainless Steel Butterfly Valve , High Performance Butterfly Valves from china suppliers

Brand Name : KAYSUNS

Model Number : KS-SV

Certification : PED,ISO

Place of Origin : China

MOQ : 10Pcs

Price : USD

Supply Ability : 400Tons per Month

Delivery Time : 30-45days

Packaging Details : Plywood Boxes

Type : Butterfly Valve

Material : 304, 316L, 1.4301, 1.4404 etc.

Size : 1/2″ to 8″

Sealing : EPDM

Standard : ISO, DIN, SMS, 3A, etc.

Connection : Welding, Threaded, Clamped, etc.

Contact Now

1/2 Inch to 8 Inch Stainless Steel Sanitary Valves - ISO / IDF Butterfly Valve

Sanitary ISO/IDF butterfly valve is ISO/IDF standard sanitary valves, they are have the same dimension. We offer it from DN15 to DN200 in stainless steel 1.4301, 1.4404, T304, T316L etc. Sanitary ISO/IDF butterfly valves are forged body and made in CNC machine, with excellent precision and high purity surface to meet the request of hygienic industries. It is idea choice for the applications of food, brewery, beverage, dairy, pharmaceutical etc.

Size	1/2″ to 8″
Material	1.4301, 1.4404, T304, T316L, etc.
Sealing	EPDM (Optional: Silicone; Viton)
Connection	Welding; Threaded; Clamped; Welding/Threaded; Flanged.
Standard	ISO, DIN, SMS, 3A, IDF, RJT
Drive	Handle or Pneumatic

Features:

Full line from 1/2″ to 8″, with standard ISO and IDF butterfly valves.
Manual and air/electric actuator operation are available for any types.
The body is forged or investment casting.
Low Pressure Losses.
360 degree installation.
Seats and seals comply with FDA177.2600.

Specification and Dimension

8 Inch Stainless Steel Butterfly Valve , High Performance Butterfly Valves

Dimension of Sanitary Welded Butterfly Valve – ISO/IDF Series

Size	O	D	K x K	A	H
θ19	78.0	19.0	8.2*8.2	50.0	39.0
θ25	78.0	25.4	8.2*8.2	50.0	39.0
θ32	80.0	31.8	8.2*8.2	50.0	40.0
θ38	80.0	38.1	8.2*8.2	50.0	40.0
θ45	95.0	45.0	8.2*8.2	50.0	47.5
θ51	100.0	50.8	8.2*8.2	50.0	50.0
θ57	110.0	57.0	8.2*8.2	50.0	55.0
θ63	117.0	63.5	10.0*10.0	56.0	58.5
θ76	129.0	76.2	10.0*10.0	60.0	64.5
θ89	140.0	89.0	10.0*10.0	62.0	70.0
θ102	160.0	101.6	10.0*10.0	66.0	80.0
θ108	160.0	108.0	10.0*10.0	66.0	80.0
θ133	190.0	133.0	12.0*12.0	74.0	95.0
θ159	225.0	159.0	12.0*12.0	80.0	112.5
θ219	285.0	219.0	14.0*14.0	86.0	142.5

8 Inch Stainless Steel Butterfly Valve , High Performance Butterfly Valves

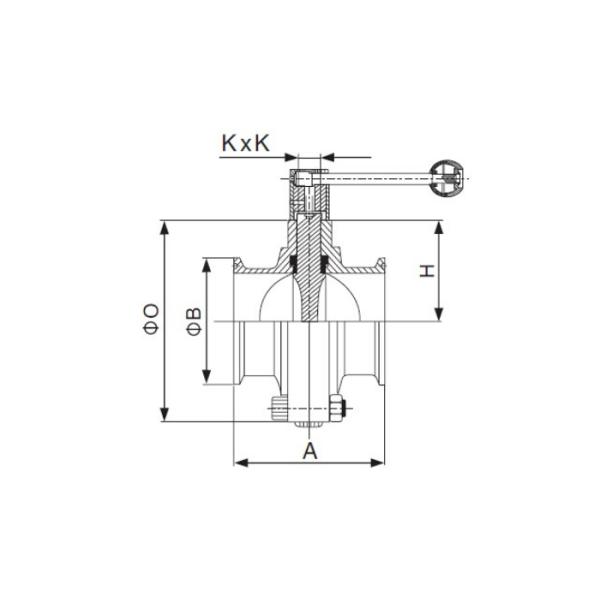

Dimension of Sanitary Clamped Butterfly Valve – ISO/IDF Series

Size	O	B	K x K	A	H
θ19	78.0	25.4	8.2*8.2	68.0	39.0
θ25	78.0	50.5	8.2*8.2	68.0	39.0
θ32	80.0	50.5	8.2*8.2	72.0	40.0
θ38	80.0	50.5	8.2*8.2	72.0	40.0
θ45	95.0	64.0	8.2*8.2	72.0	47.5
θ51	100.0	64.0	8.2*8.2	74.0	50.0
θ57	110.0	77.5	8.2*8.2	74.0	55.0
θ63	117.0	77.5	10.0*10.0	80.0	58.5
θ76	129.0	91.0	10.0*10.0	80.0	64.5
θ89	140.0	106.0	10.0*10.0	86.0	70.0
θ102	160.0	119.0	10.0*10.0	90.0	80.0
θ108	160.0	119.0	10.0*10.0	90.0	80.0
θ133	190.0	145.0	12.0*12.0	114.0	95.0
θ159	225.0	183.0	12.0*12.0	120.0	112.5
θ219	285.0	233.5	14.0*14.0	126.0	142.5

8 Inch Stainless Steel Butterfly Valve , High Performance Butterfly Valves

Dimension of Sanitary Three-piece Butterfly Valve – ISO/IDF Series

Size	O	D	K x K	A	H
θ19	78.0	19.0	8.2*8.2	100.0	39.0
θ25	78.0	25.4	8.2*8.2	100.0	39.0
θ32	80.0	31.8	8.2*8.2	100.0	40.0
θ38	80.0	38.1	8.2*8.2	100.0	40.0
θ45	95.0	45.0	8.2*8.2	100.0	47.5
θ51	100.0	50.8	8.2*8.2	100.0	50.0
θ57	110.0	57.0	8.2*8.2	104.0	55.0
θ63	117.0	63.5	10.0*10.0	100.0	58.5
θ76	129.0	76.2	10.0*10.0	100.0	64.5
θ89	140.0	89.0	10.0*10.0	100.0	70.0
θ102	160.0	101.6	10.0*10.0	108.0	80.0
θ108	160.0	108.0	10.0*10.0	108.0	80.0
θ133	190.0	133.0	12.0*12.0	114.0	95.0
θ159	225.0	159.0	12.0*12.0	120.0	112.5
θ219	285.0	219.0	14.0*14.0	130.0	142.5

8 Inch Stainless Steel Butterfly Valve , High Performance Butterfly Valves

Dimension of Sanitary Threaded Butterfly Valve – ISO/IDF Series

Size

K x K

1”

78.0

37.1*8TACME

8.0*8.0

66.0

39.0

1 1/2”

80.0

50.6*8TACME

8.0*8.0

70.0

43.0

2”

100.0

64.2*8TACME

10.0*10.0

76.0

51.0

2 1/2”

117.0

77.7*8TACME

10.0*10.0

80.0

57.5

3”

129.0

91.2*8TACME

10.0*10.0

84.0

64.0

4”

160.0
